[Oracle] 인스턴스 추가

요구사항

1. OS계정 : oracle
2. BASE : /oracle2/app/oracle HOME : /oracle2/app/oracle/product/192
3. SID : testVM2
4. 아카이브폴더 : /ARCH2
5. 데이터파일 폴더 : /ORADATA/TESTVM2

※ 기존에 설치된 인스턴스가 있어 기본 환경이 세팅되었다는 전제 하에 진행

• 방화벽 중지

(ORCL)/oracle/app/oracle/product/192/network/admin> systemctl stop firewalld
==== AUTHENTICATING FOR org.freedesktop.systemd1.manage-units ===
Authentication is required to manage system services or units.
Authenticating as: root
Password:
==== AUTHENTICATION COMPLETE ===

• 경로 생성

[root@vc7-19 ~]# mkdir /oracle2
[root@vc7-19 ~]# chown -R oracle:dba /oracle2
[root@vc7-19 ~]# chmod -R 755 /oracle2
[root@vc7-19 ~]# su - oracle
(ORCL)/oracle/app/oracle/product/192> mkdir -p /oracle2/app/oracle/product/192
(ORCL)/oracle/app/oracle/product/192>



※ 설치 과정 중 GUI가 필요하기 때문에 GUI가 지원되는 프로그램을 사용해야 한다.

여기서는 PuTTY를 사용한다.

• GUI 설정

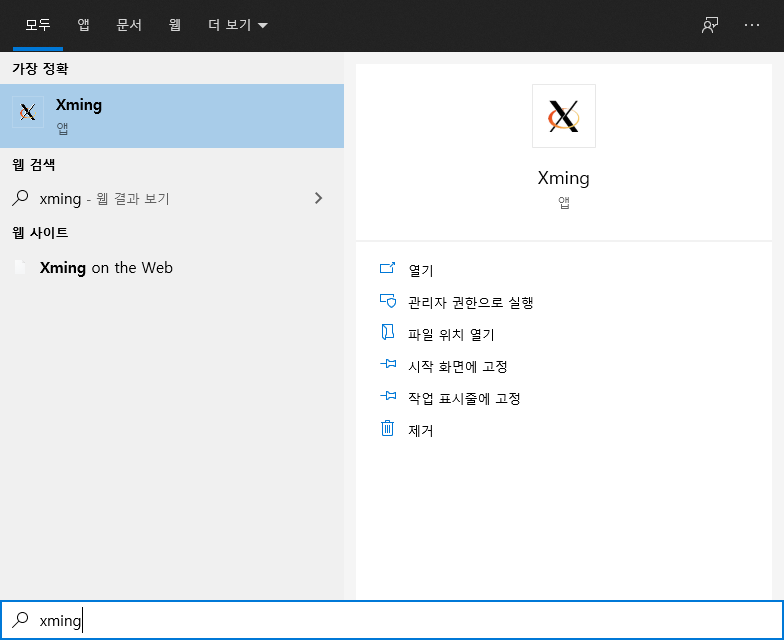

  • Xming 실행

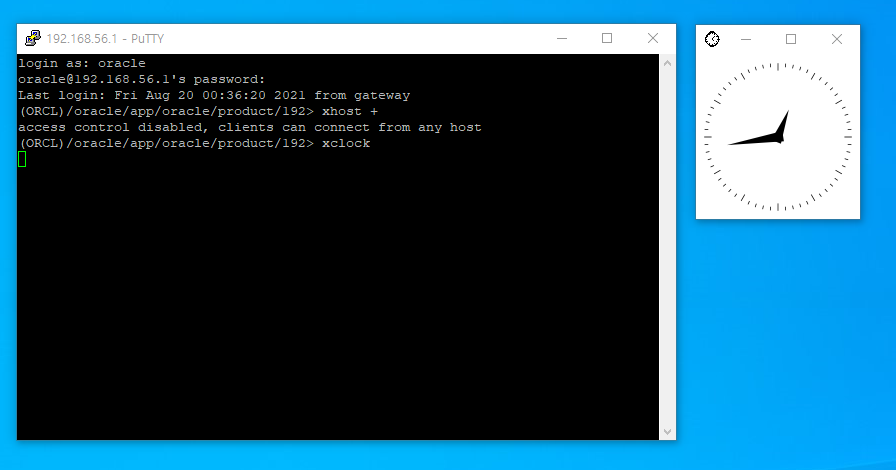

> xhost +

> xclock

커맨드가 정상 작동하는지 확인한다.



※ GUI를 실행하려면 PuTTY 로그인 시 바로 oracle 계정으로 접속해야 한다.

(root 계정으로 접속 후 su - oracle 하면 GUI가 실행되지 않았다)



• Oracle 설치

GUI 설정이 완료 되었다면 다음 단계를 진행한다.

오라클 설치 파일을 새 경로에 압축 해제한다.

(ORCL)/oracle/app/oracle/product/192> unzip LINUX.X64_193000_db_home.zip -d /oracle2/app/oracle/product/192

설정 파일 편집

(ORCL)/oracle/app/oracle/product/192> cd /oracle2/app/oracle/product/192
(ORCL)/oracle2/app/oracle/product/192> vi .profile
...

설정 적용 후 설치 시작

(ORCL)/oracle2/app/oracle/product/192> . ./.profile

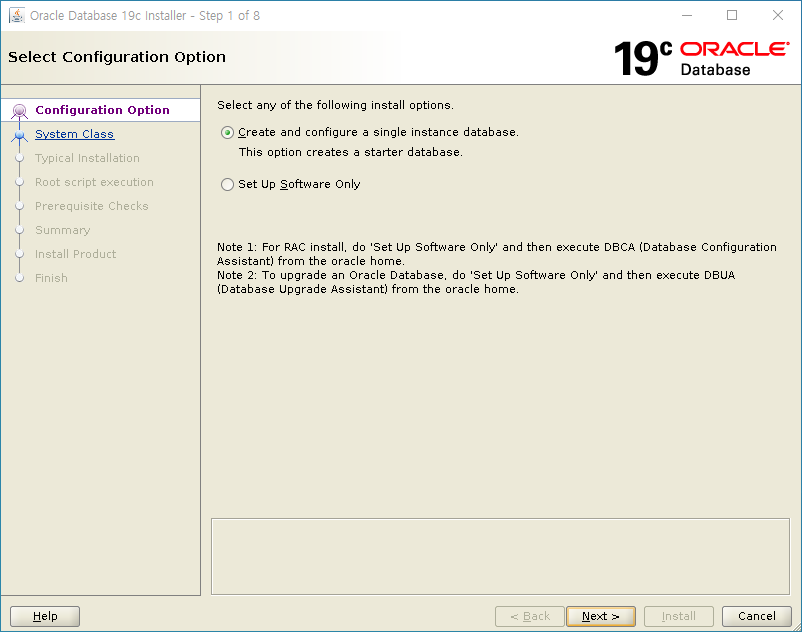

(testVM2)/oracle2/app/oracle/product/192> ./runInstaller

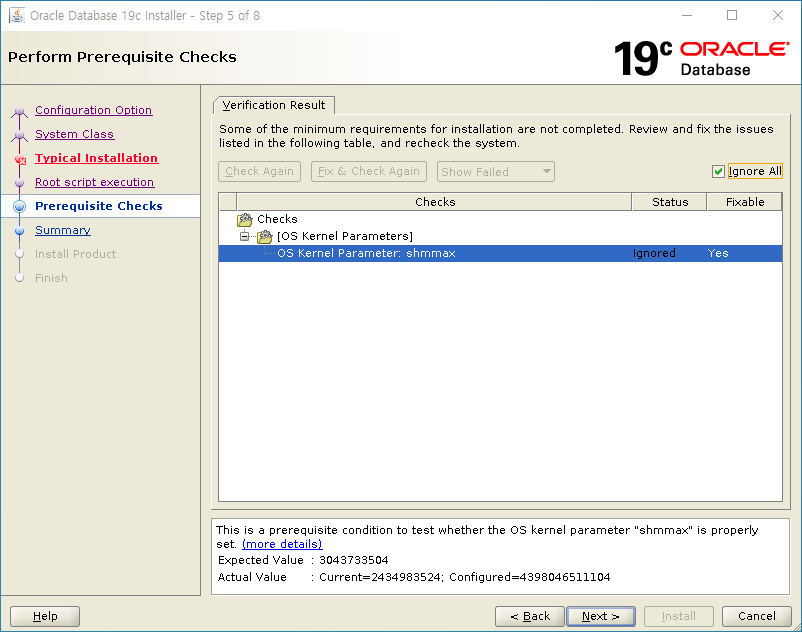

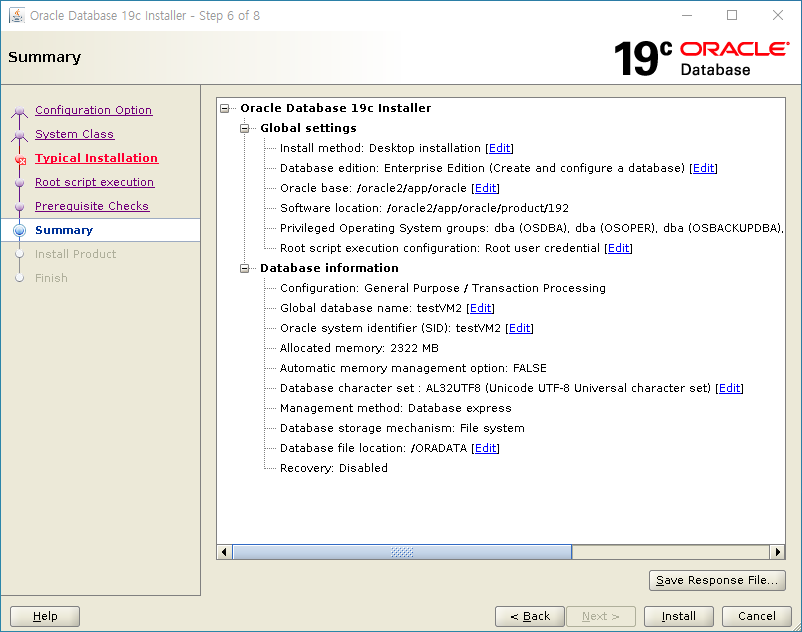

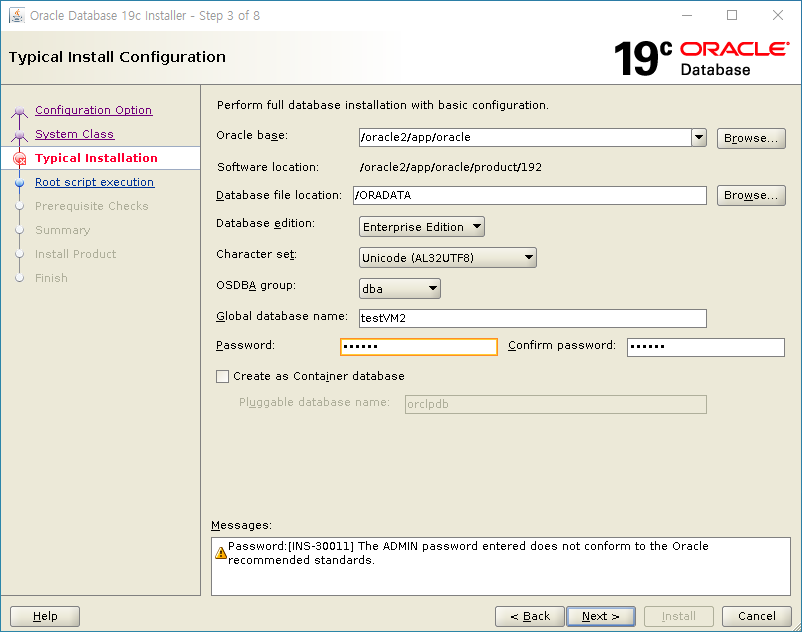

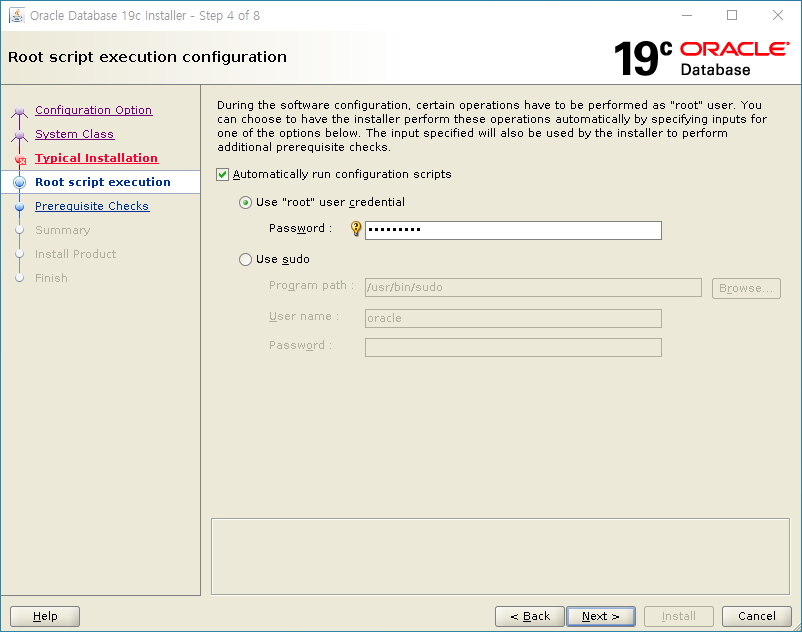

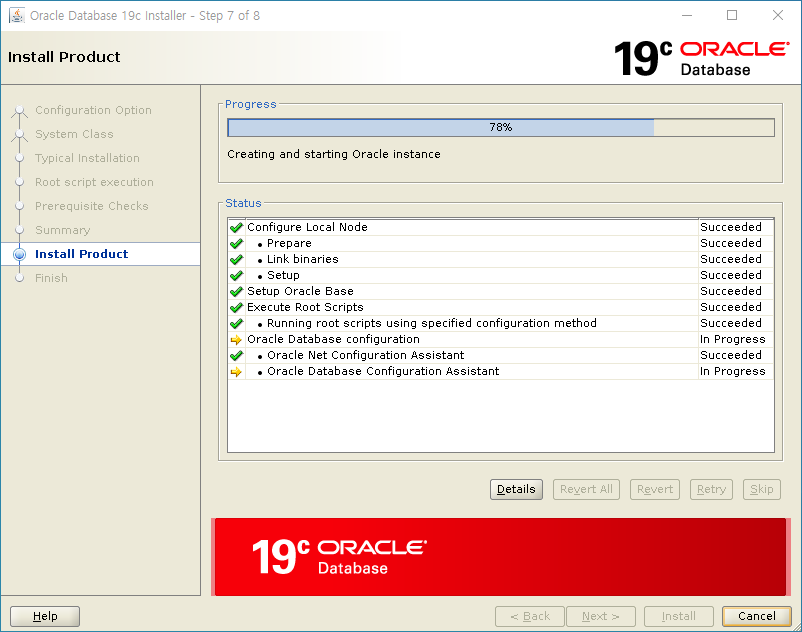

새 경로에 오라클 설치



• 리스너 설정 변경

# vi tnsnames.ora

LISTENER_TESTVM2 =
  (ADDRESS = (PROTOCOL = TCP)(HOST = vc7-19.localdomain)(PORT = 1522))


TESTVM2 =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = vc7-19.localdomain)(PORT = 1522))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = testVM2)
    )
  )

# vi listener.ora
LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = vc7-19.localdomain)(PORT = 1522))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1522))
    )
  )

# vi sqlnet.ora

NAMES.DIRECTORY_PATH= (TNSNAMES, EZCONNECT)
SQLNET.ALLOWED_LOGON_VERSION_SERVER=11
SQLNET.ALLOWED_LOGON_VERSION_CLIENT=11           # 외부 서버에서 연결하기 위함 (WINDOWS)



• 리스너 시작

(testVM2)/oracle2/app/oracle/product/192/network/admin> lsnrctl start

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 20-AUG-2021 03:06:07

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Starting /oracle2/app/oracle/product/192/bin/tnslsnr: please wait...

TNSLSNR for Linux: Version 19.0.0.0.0 - Production
System parameter file is /oracle2/app/oracle/product/192/network/admin/listener.ora
Log messages written to /oracle2/app/oracle/diag/tnslsnr/vc7-19/listener/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=vc7-19.localdomain)(PORT=1522)))
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1522)))

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=vc7-19.localdomain)(PORT=1522)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                20-AUG-2021 03:06:07
Uptime                    0 days 0 hr. 0 min. 0 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /oracle2/app/oracle/product/192/network/admin/listener.ora
Listener Log File         /oracle2/app/oracle/diag/tnslsnr/vc7-19/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=vc7-19.localdomain)(PORT=1522)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1522)))
The listener supports no services
The command completed successfully



• database 확인

(testVM2)/oracle2/app/oracle/product/192/network/admin> sqlplus /nolog

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Aug 20 03:08:51 2021
Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle.  All rights reserved.

SQL> conn /as sysdba
Connected.
SQL> select name
  2  from v$database;

NAME
------------------
TESTVM2

• 변경 후 database 재확인

(testVM2)/oracle2/app/oracle/product/192/network/admin> cd /oracle/app/oracle/product/192
(testVM2)/oracle/app/oracle/product/192> . ./.profile
(ORCL)/oracle/app/oracle/product/192> sqlplus /nolog

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Aug 20 03:14:31 2021
Version 19.11.0.0.0

Copyright (c) 1982, 2020, Oracle.  All rights reserved.

SQL> conn /as sysdba
Connected.
SQL> select name
  2  from v$database;

NAME
---------
ORCL
